Product Overview

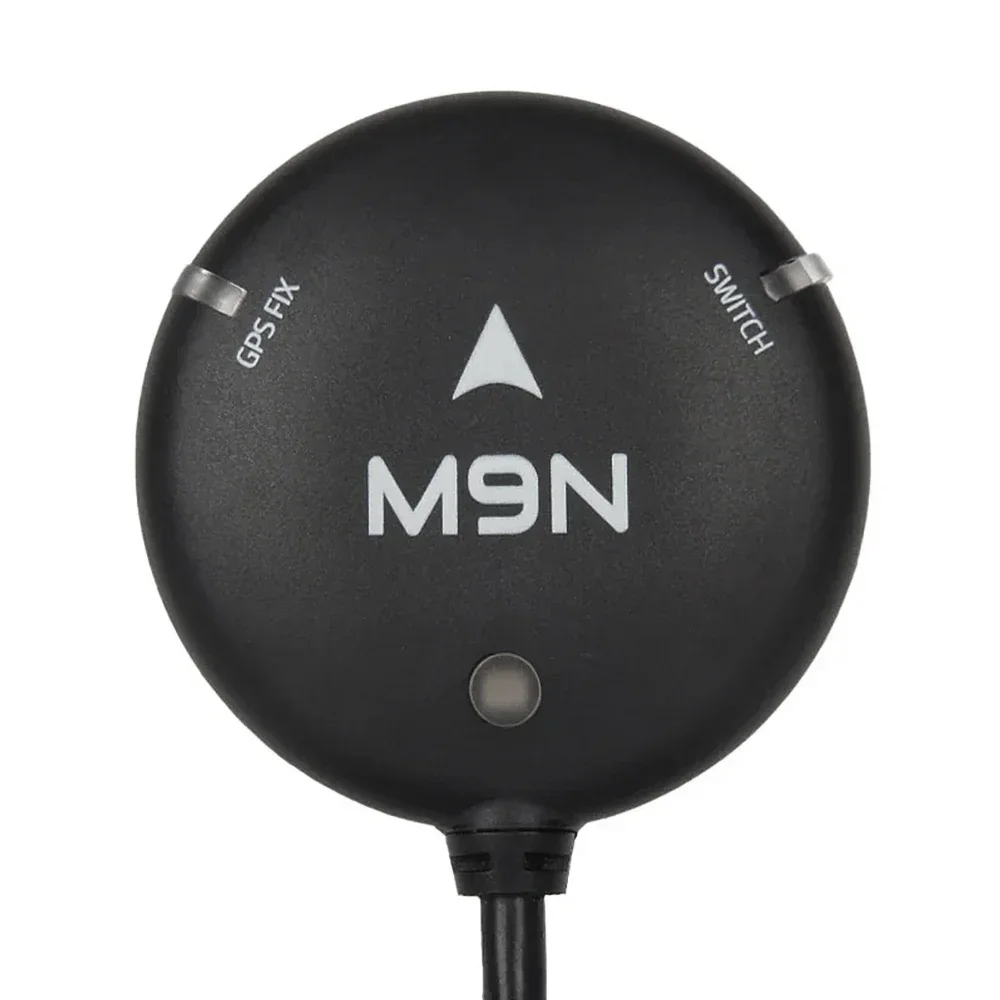

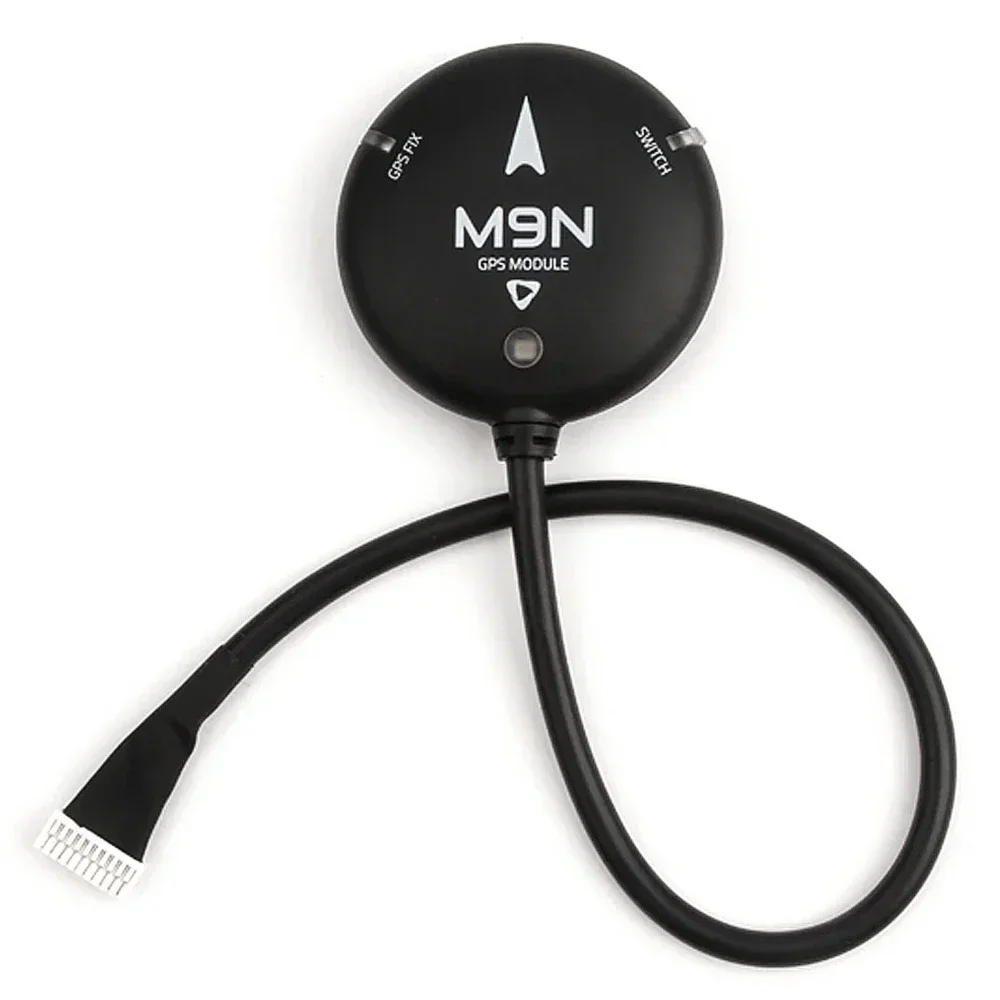

The M9N GPSuses multi-constellation GNSSpowered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

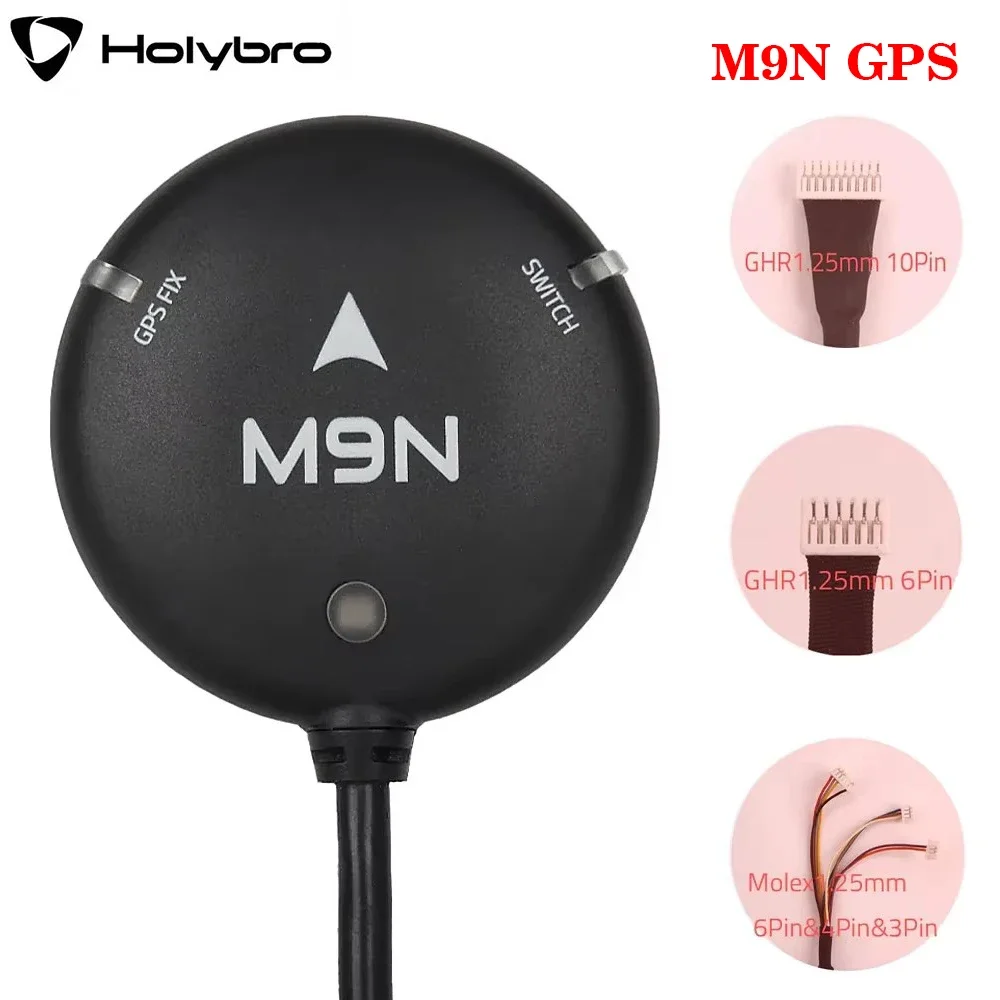

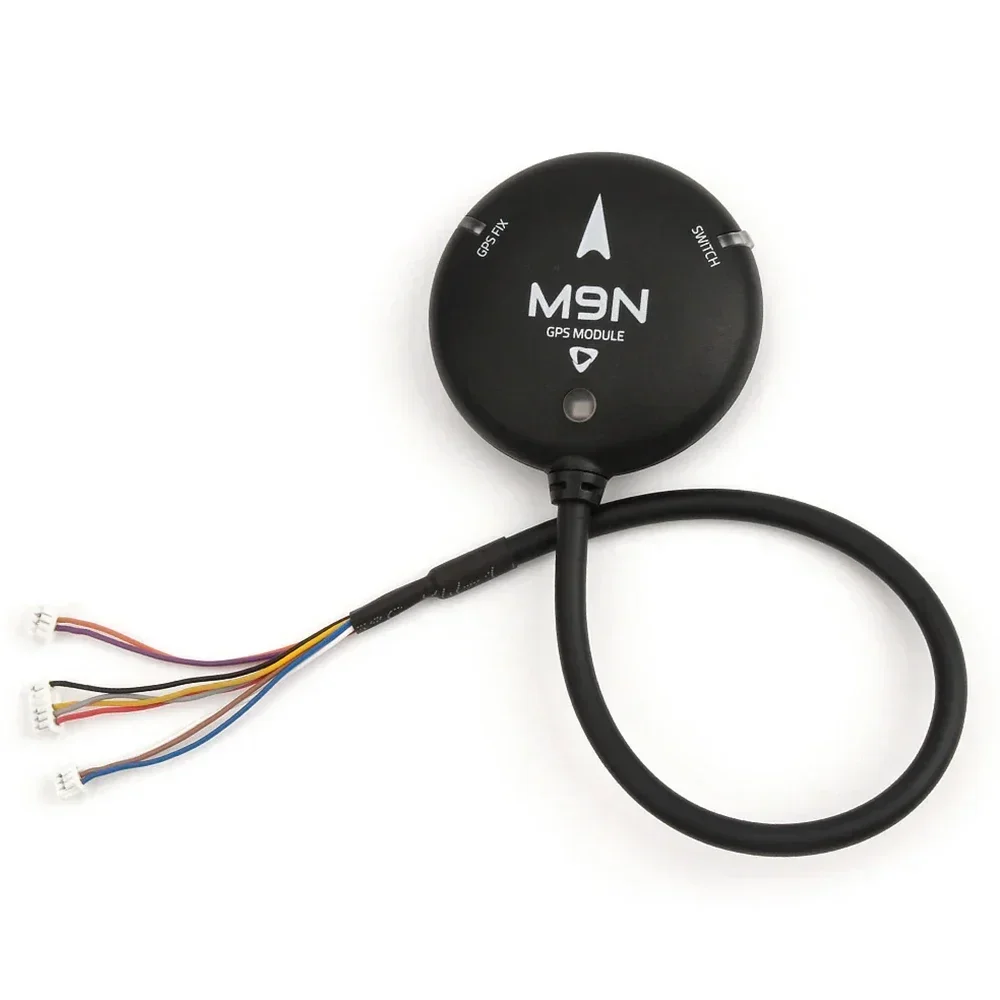

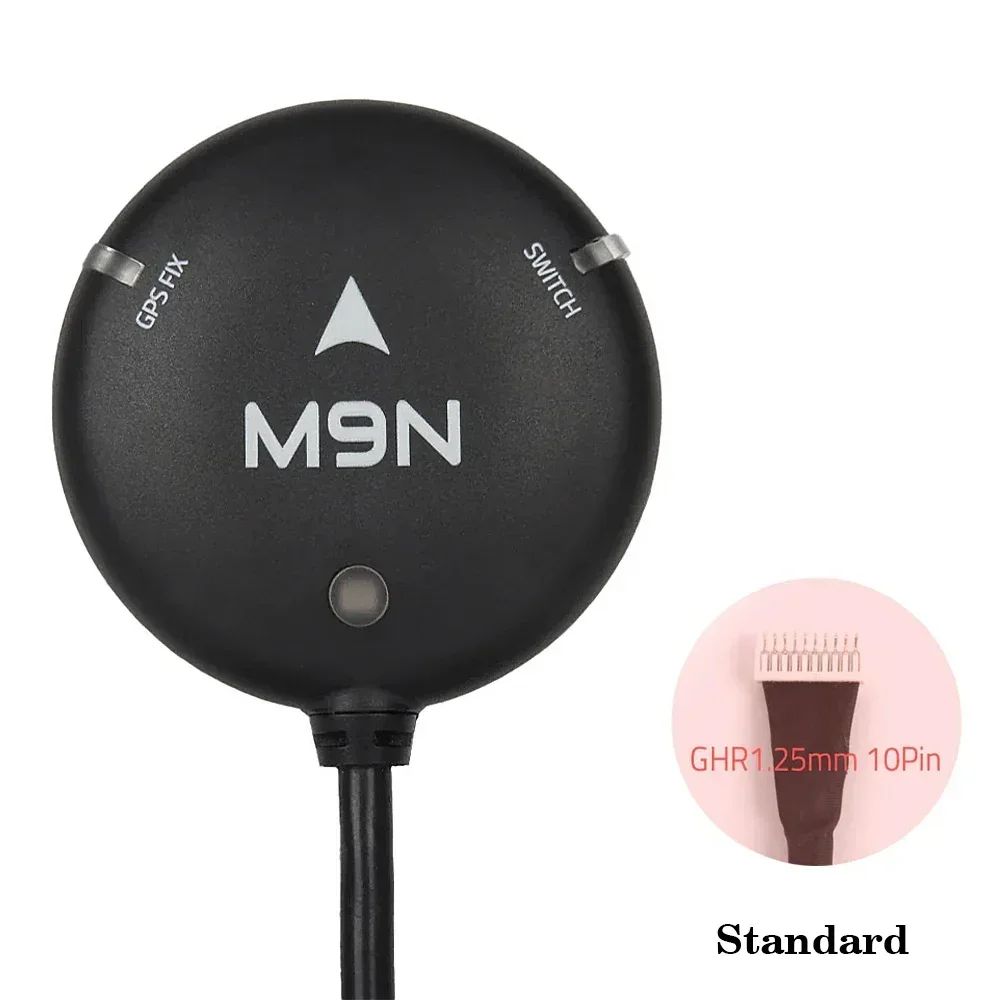

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 (38400 previously).
The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Product Images & Diagrams
Key Product Details
- Material
- Composite Material
- QZSS
- L1S
- Ardupilot User
- If unable to preform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.
Important Notes
- The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
- Holybro M10 GPS
- Holybro M9N GPS
- GNSS Receiver
- Ublox M10
- Ublox M9N

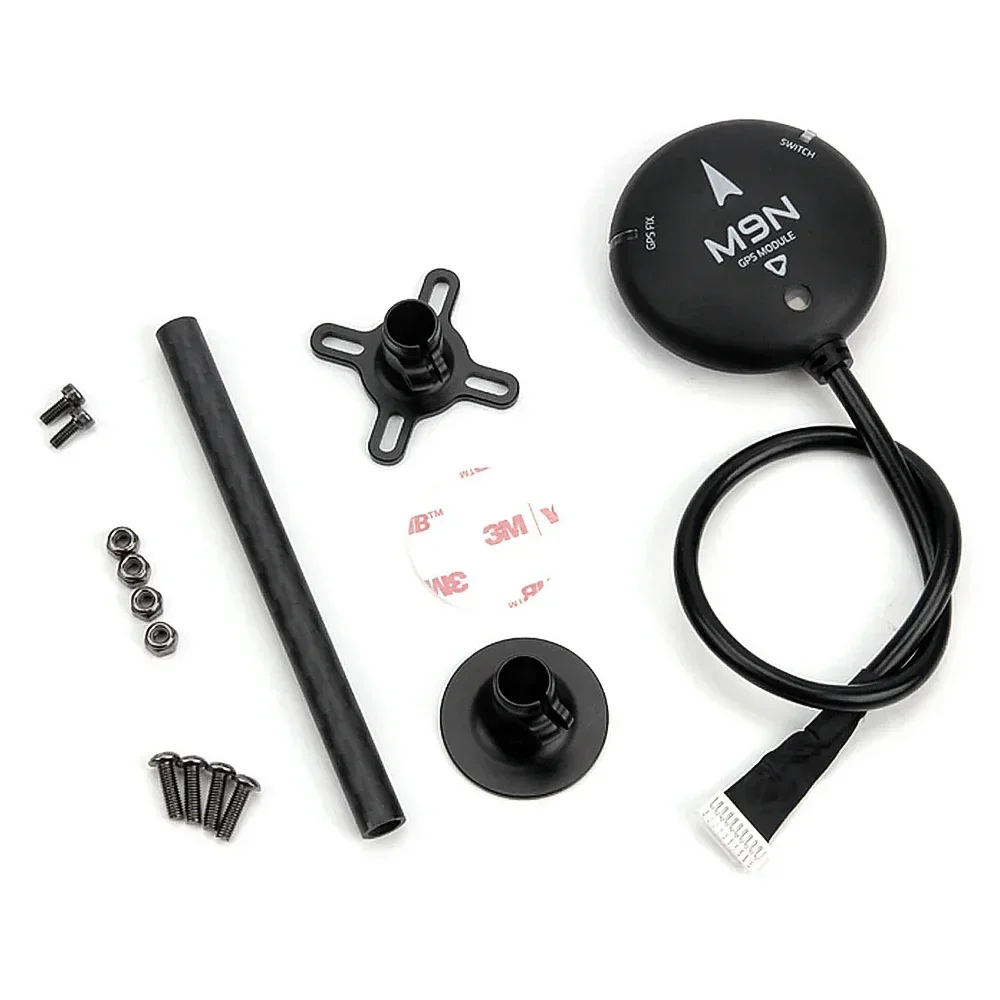

What's in the Box
- 1x M9N GPS Module

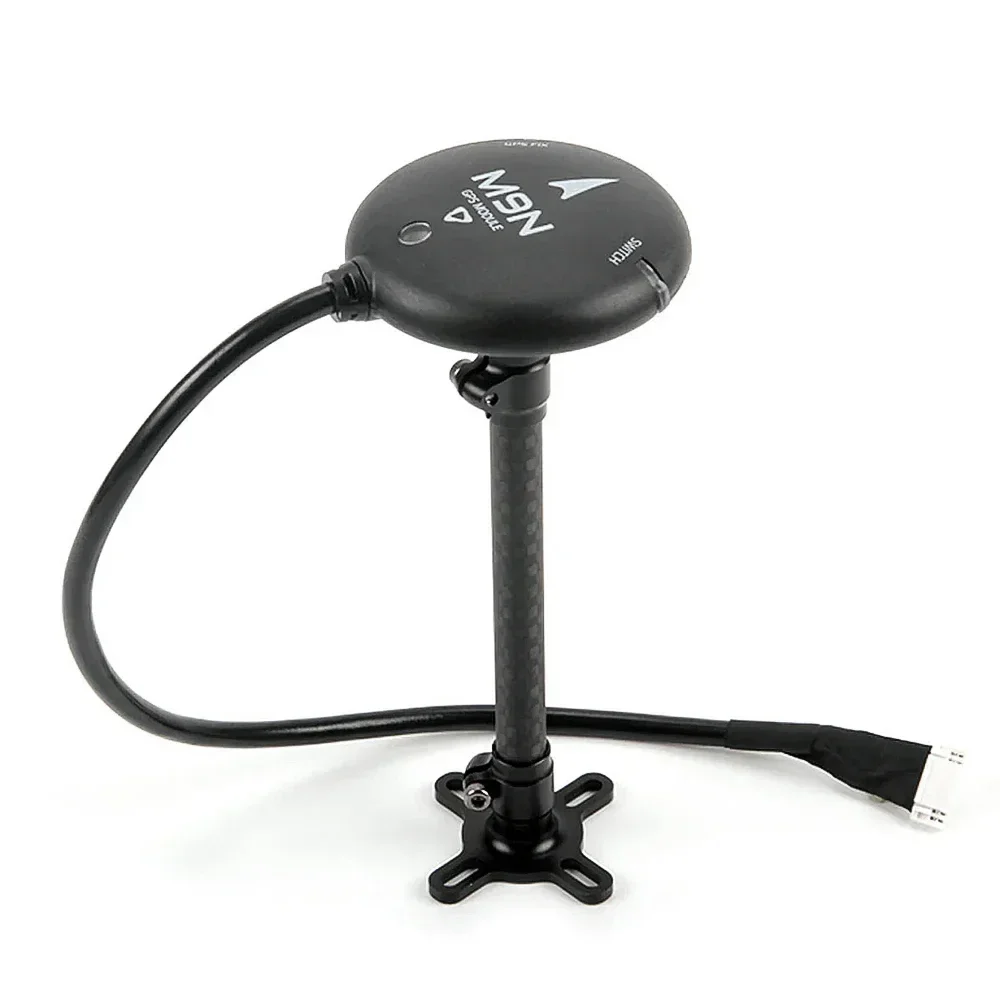

- 1x Fixed Carbon Fiber GPS mount
