Diatone Mamba F45 / F55 / F65 4-in-1 ESC

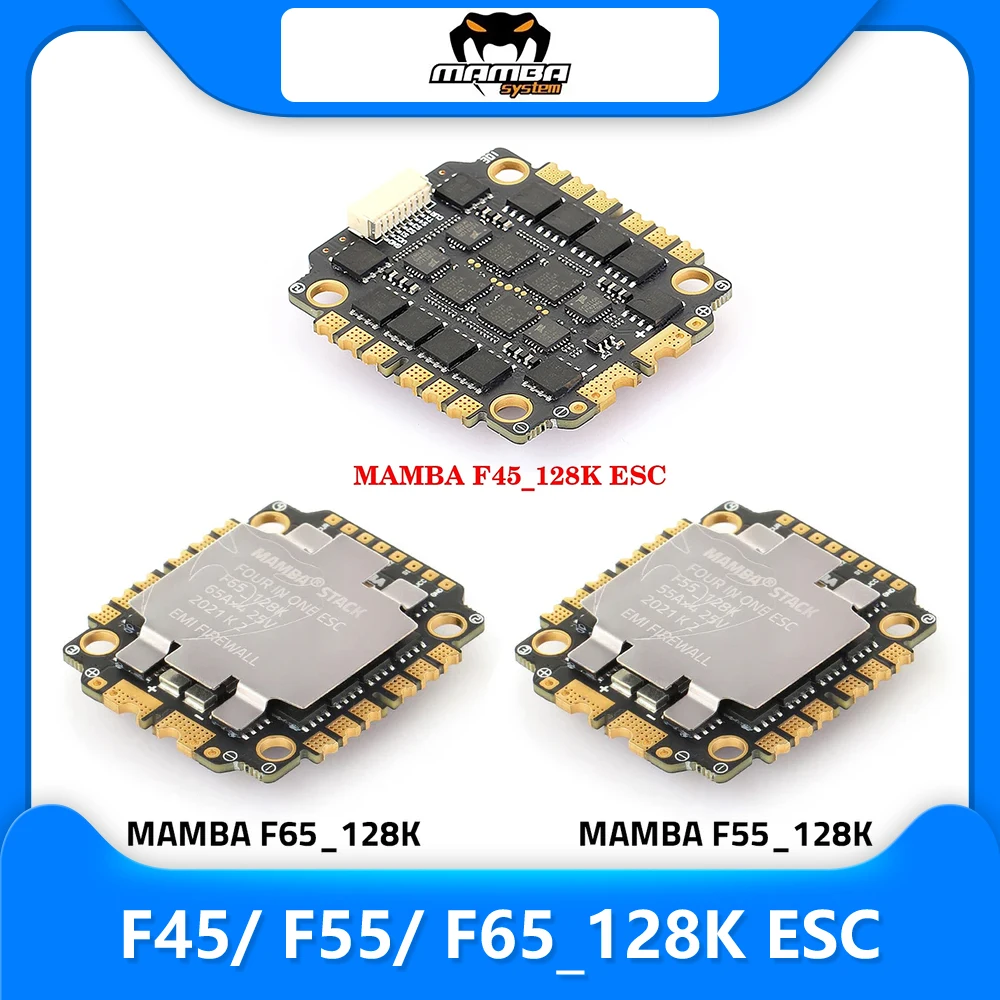

Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 1

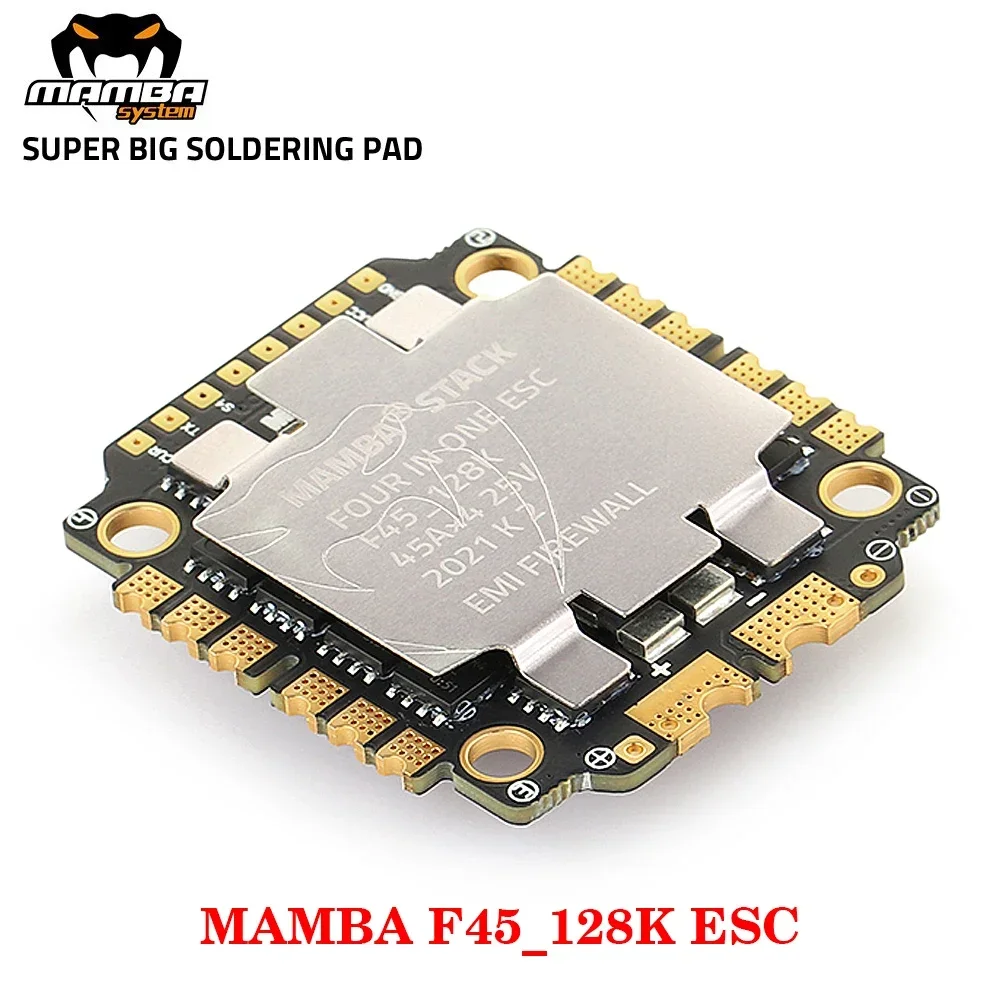

Diatone Mamba F45 / F55 / F65 4-in-1 ESC - mamba f45 128k esc

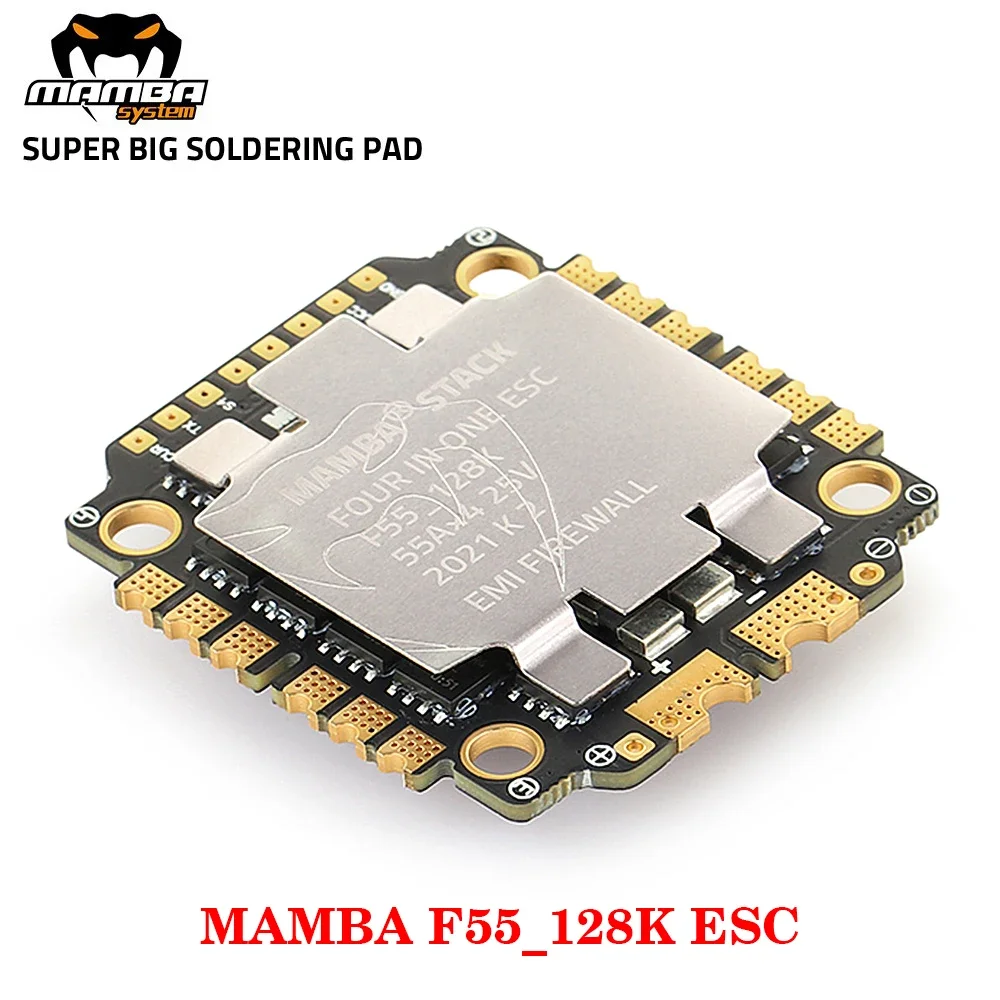

Diatone Mamba F45 / F55 / F65 4-in-1 ESC - mamba f55 128k esc
Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 4

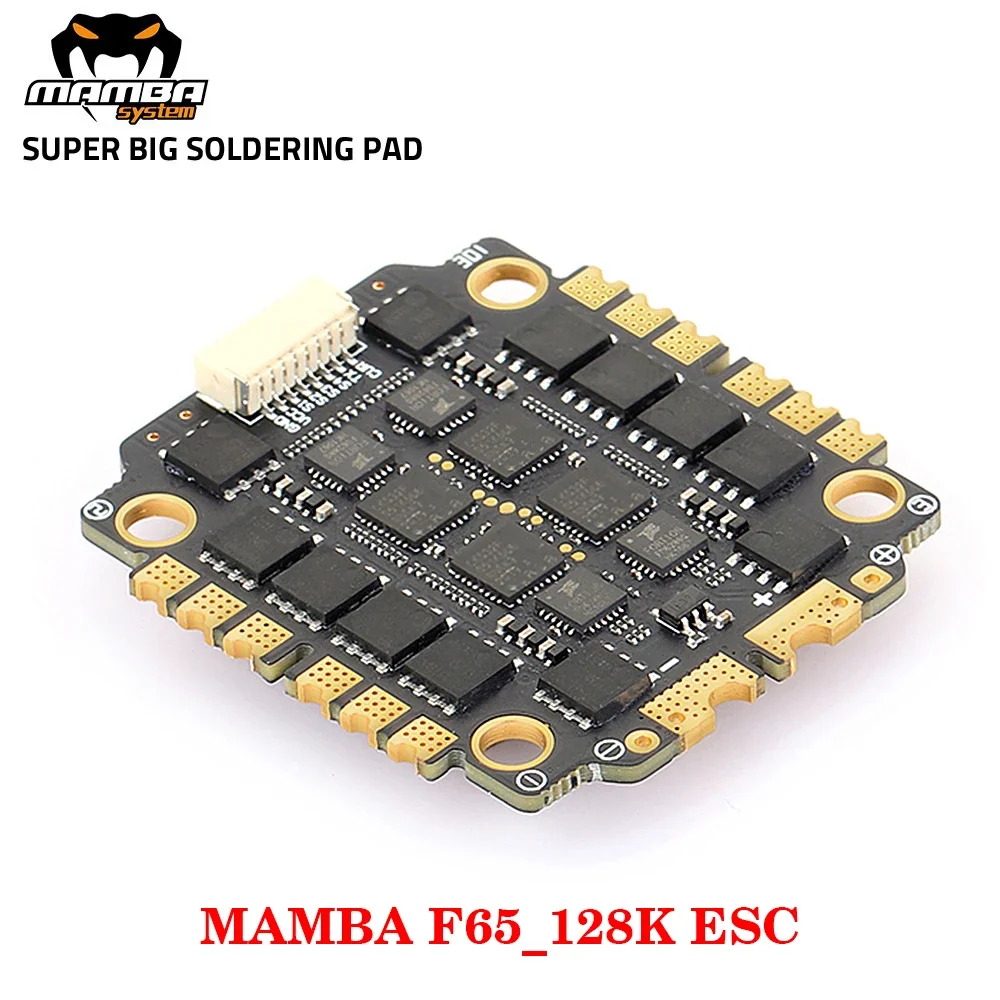

Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 5
BrandDiatoneModelMamba F45 / F55 / F65 128K

Diatone Mamba F45 / F55 / F65 4-in-1 ESC

Price range: $53.16 through $71.95

StockIn stock - select an option
WarehouseChina Warehouse

Mamba 128K BLHeli32 4-in-1 ESC, available in 45A, 55A, and 65A versions for 4-6S FPV builds.

Save Part
Delivery informationShipping service, cost, and delivery estimate depend on the destination.
Shipping details
  • Fitment supportSend a part photo before ordering.Check fitment
  • Returns & warrantyCoverage follows the published policy.View policy
  • Order trackingTracking is provided after dispatch.Track order
Key specifications
Working voltage
4 ~ 6S Lipo (16.8V ~ 25.2V)
Firmware
BLHELI_32 MABA F45_128K / BLHELI_32 MABA F55_128K / BLHELI_32 MABA F65_128K
Work current
45A × 4 / 55A × 4 / 65A × 4
Peak current
55A (10S) / 65A (10S) / 75A (10S)
BEC output
NO
Payment supportSupported payment platforms. Availability is confirmed at checkout.
Share

Product Overview

This 4-in-1 ESC is intended for compatible drone repair, replacement, or upgrade work. Confirm the listed specifications and fitment before ordering.

Product Images & Diagrams

Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 1
Diatone Mamba F45 / F55 / F65 4-in-1 ESC - mamba f45 128k esc
Diatone Mamba F45 / F55 / F65 4-in-1 ESC - mamba f55 128k esc
Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 4
Diatone Mamba F45 / F55 / F65 4-in-1 ESC detail image 5

Key Product Details

Peak current
55A (10S)
Firmware
BLHELI_32 MABA F45_128K
Model Number
MAMBA F45/ F55/ F65_128K
Material
Composite Material
Working voltage
4 ~ 6S Lipo (16.8V ~ 25.2V)
Work current
45A × 4

What's in the Box

  • High -frequency filter capacitance 1000uf/35V × 1
  • 8Pin SH1.0 Flying Control Electrocontonal Connection × 2
  • AMASS XT60 power plug × 1

Technical Specifications

BrandDiatone
Product ModelMamba F45 / F55 / F65 128K
Product SystemESC
Working voltage4 ~ 6S Lipo (16.8V ~ 25.2V)
Work current45A × 4
Peak current55A (10S)
BEC outputNO
FirmwareBLHELI_32 MABA F45_128K
AgreementDSHOT300/600/1200
PWM24 ~ 128K
TVS Power ProtectionYes
Installation size30.5mm/m3
Work current55A × 4
Peak current65A (10S)
FirmwareBLHELI_32 MABA F55_128K
Work current65A × 4
Peak current75A (10S)
FirmwareBLHELI_32 MABA F65_128K
Available OptionsMAMBA F45 128K ESC, MAMBA F55 128K ESC, MAMBA F65 128K ESC

Compatibility & Shipping

Check fitment by photo
Ships From: China Warehouse
Processing Time: 1-3 business days

Model Reference

These model references come from supplier data and are not independently verified. Match the connector, voltage, mounting size, and selected option before ordering.

Brand Model System Status
DIATONE Mamba F45 / F55 / F65 ESC Verify before ordering
