Product Overview
High performance STM32H753 Processor with a clock speed of up to 480 MHz
All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).
Temperature-controlled IMU board, allowing the optimum working temperature of IMUs

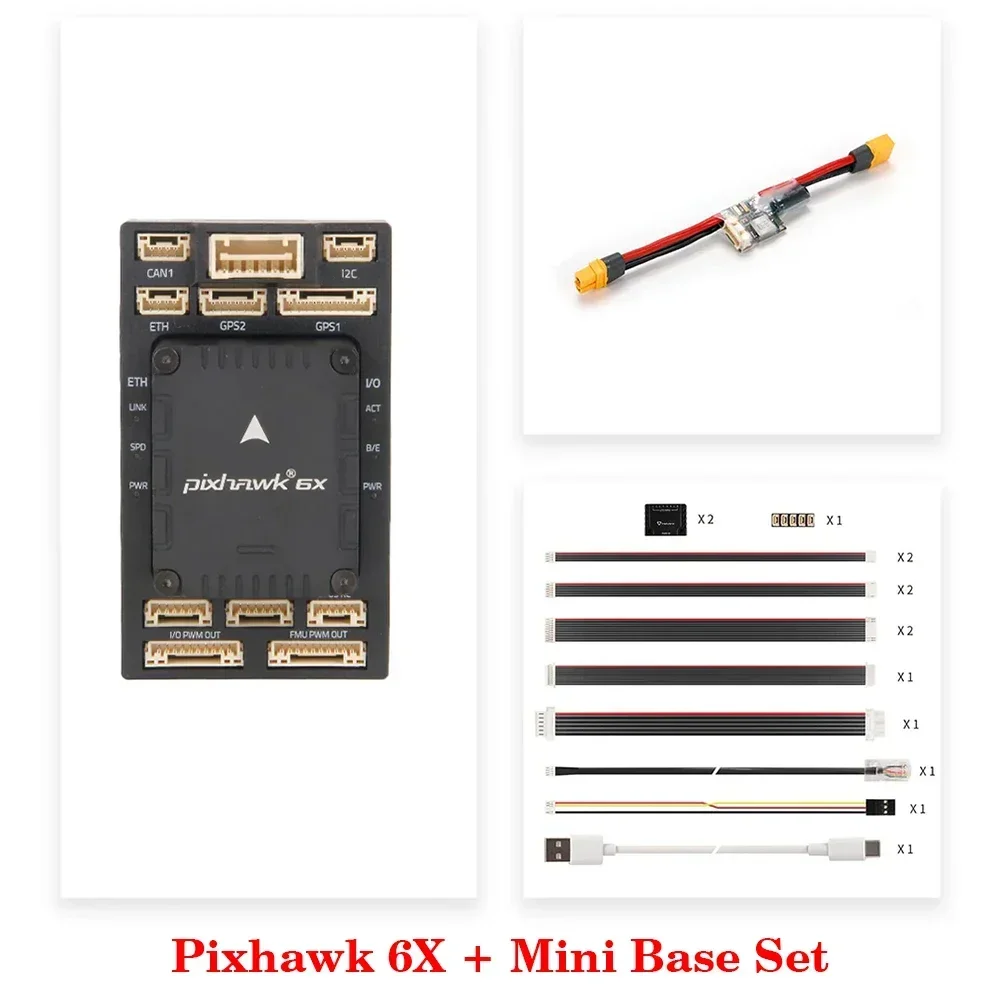

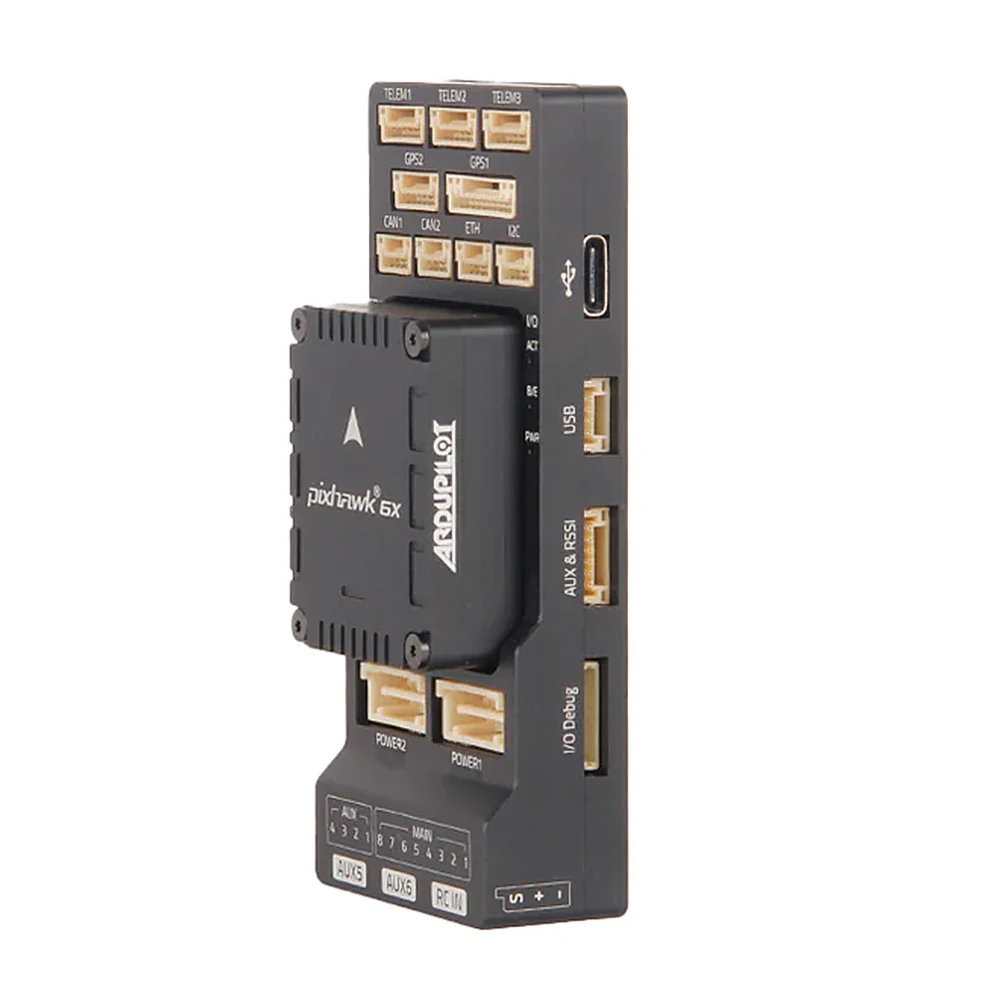

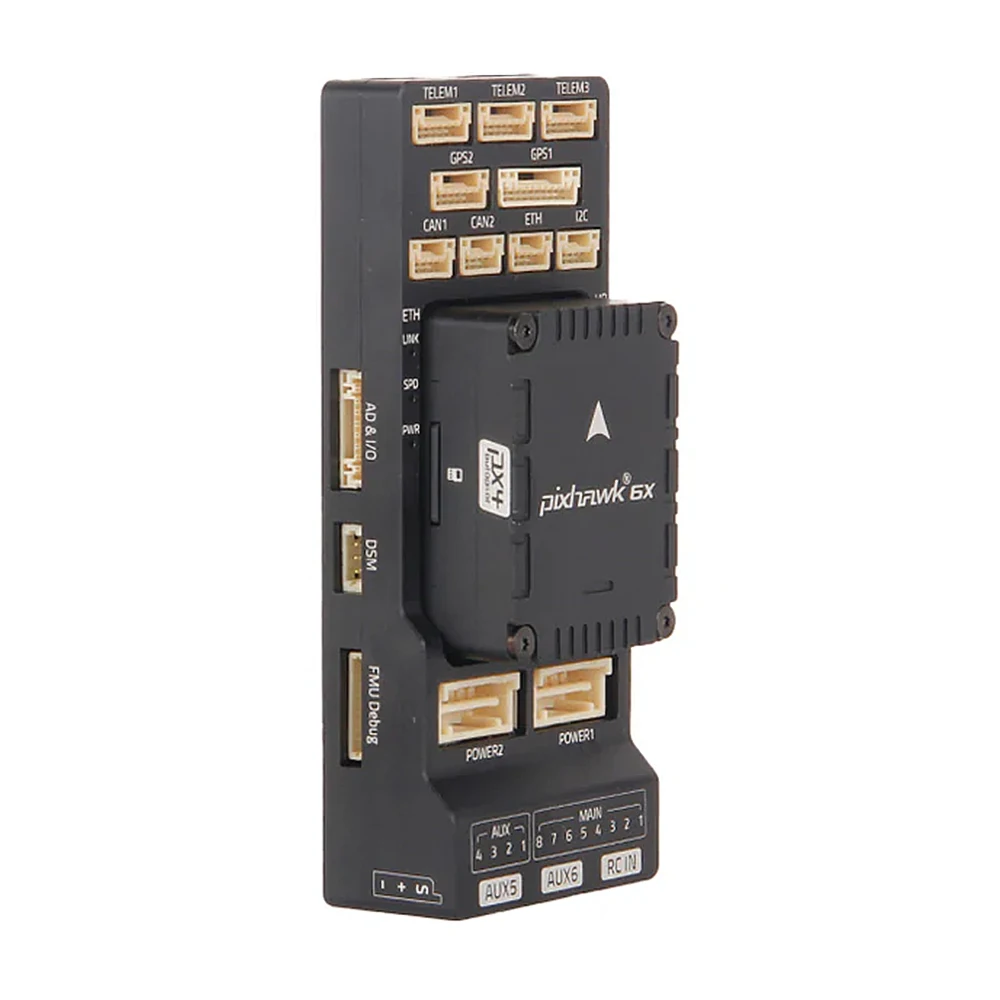

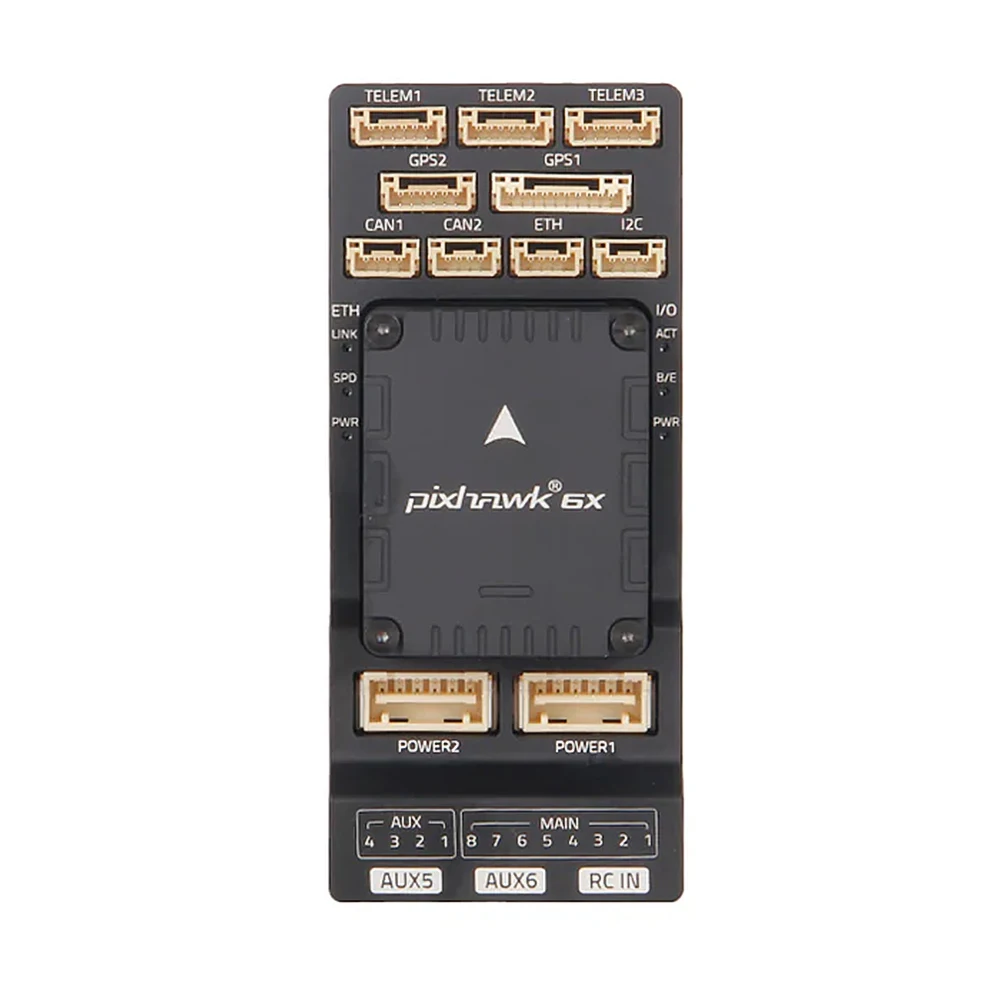

Product Images & Diagrams
Key Product Details
- FMU Processor
- STM32H753
- Model Number

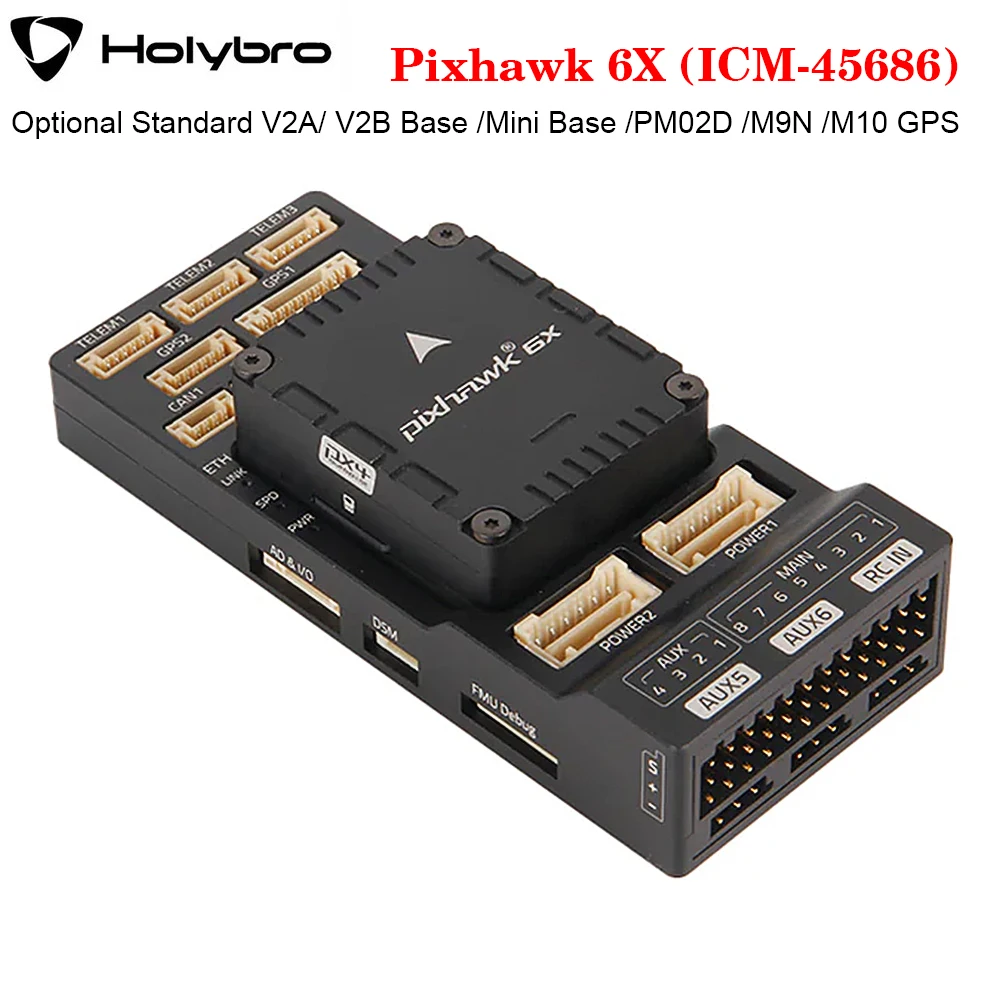

- Holybro Pixhawk 6X (ICM-45686)
- Material
- Composite Material
- Redundancy
- 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
- Modular flight controller
- separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
- Triple redundancy domains
- Completely isolated sensor domains with separate buses and separate power control
Important Notes
- The Rev 8 Version is supported in the PX4 1.14.3 release or later, as well as the Ardupilot 4.5.0 stable release or later. It ships with PX4 firmware by default. User can also use Ardupilot firmware by flashing the firmware via Mission Planner or QGroundControl.

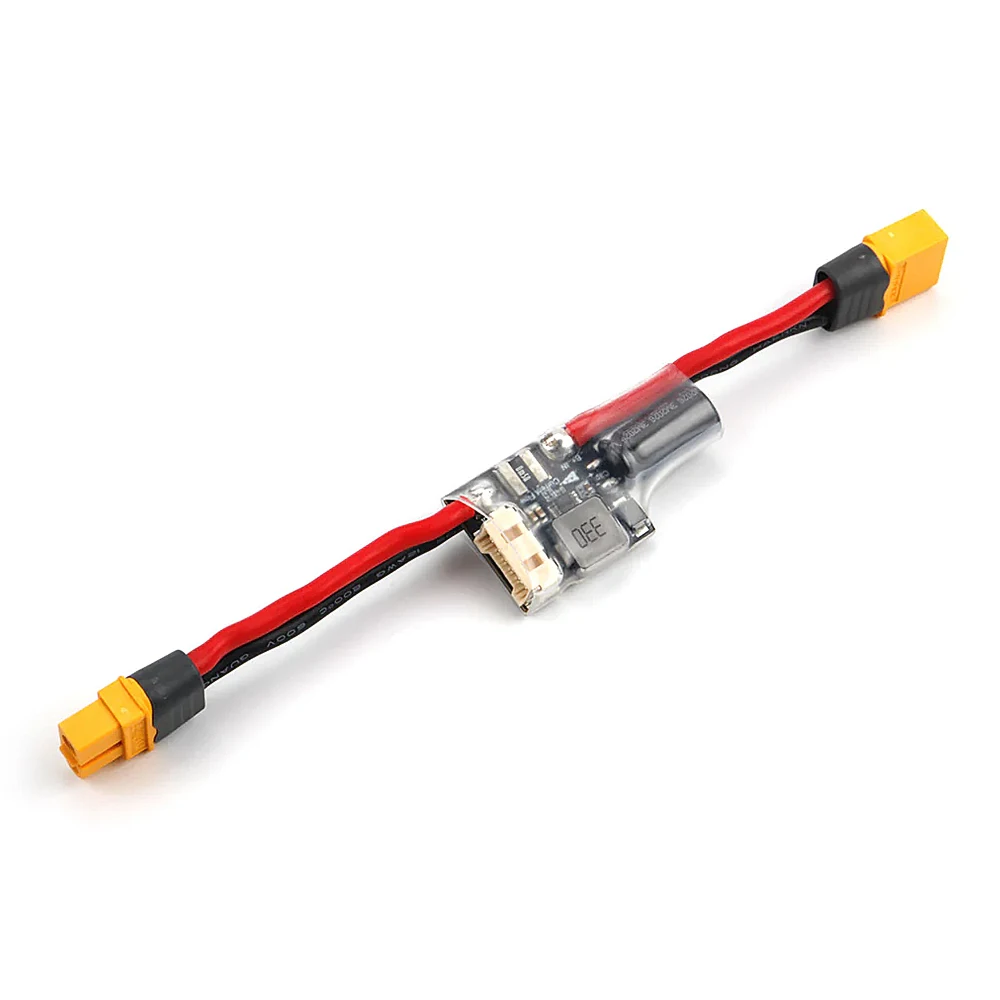

- Power module comparison chart
